Welded Wire Mesh

For strength and versatility, our Weldmesh provides a cost effective solution for a wide variety of applications throughout industry, building and construction, agriculture and horticulture.



Feature:
Supply in both roll and panel forms
The horizontal and vertical wires are electrically welded at each intersection to form a virtually unbreakable mesh.



Applications
partitions and enclosures, machinery and window guards, ventilator guards, tree guards, shelving, racking and grills. Safety barriers, security cages, fireguards and fan guards. Fencing and gates, stairways, balustrading and catwalks. Agricultural and horticultural applications, poultry pens and flooring, animal pens, cages and aviaries.



Finish
Mild steel,galvanized, PVC coated, powder coated, stainless steel.


~]XU~LOJVR0SE8@PI1OFQGQ

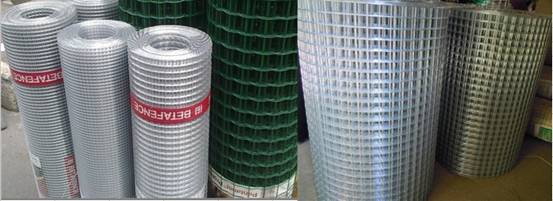

Standard Specification List Welded Wire Mesh in rolls

Opening



Wire Diameter<BWG>

In inch

In metric unit(mm)



1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

Technical Note:





1.roll length: 6m to 30m; width: 0.5m to 1.8m



2.Packing: outside water-proof paper wrapped, customer packing available.

{}FQQL~E8EPEOZ)FUFBWIOK

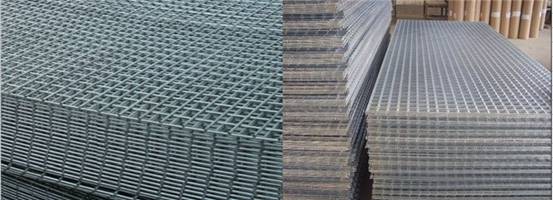

Standard Specification List Welded Wire Mesh in panel

Opening



Panel dimensions

Wire Diameter<BWG>

In inch

In metric unit(mm)

(ft)



2"x2"

50.8x50.8

4'x8'

6,8,9,10,12,14

3"x3"

76.2x76.2

6'x12'



1"x1"

25.4x25.4

6'x4'



2"x1"

50.8x25.4

6'x3'



3"x1/2"

76.2x12.7

7'x12'



1-1/2"x1-1/2"

38.1x38.1





3"x1"

76.2x25.4





4"x4"

101.6x101.6





Technical note:







1. Special size is available at customer request.



2.Packing: panels are strapped and packed in water resistant foil to protect against damages then delivered on a four way pallet.
