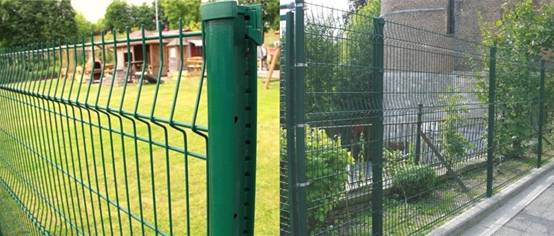

Nylofor 3D

The Nylofor 3D system is a modern and visually appealing heavy weldmesh fencing system.

Benefits

Rigidity
Heavy welded mesh panels of Nylofor 3D with rectangular meshes and horizontal reinforcements guarantee a high level of rigidity.

Complete system
Nylofor 3D consists of panels in various height supported by four types of post, each with a specific fixing system. All types are available with adapted accessories and a wide range of swing and sliding gates.

Long lifetime
The coating technology is state of the art and assures an extra long life. A special layer is applied after galvanisation to ensure total adhesion of the polyester top coat.

Fast installation
All components have been developed to provide a professional product of a high quality that can be installed efficiently and rapidly.


Ideal for

Public buidings, factories and wordshops, schools, parks, playgrounds and sportstadia, airports and military sites,...

Mesh size: 200x50mm
Horizontal and vertical wire diameter:5mm(Nylofor 3D Super 8mm/5mm)
Finish: galvanized then polyester coat(Nylofor 3D Pro galvanized then pvc coat)
Color:  green RAL6005,white RAL9010,black color RAL9005 and other colors.
The panels have vertical barbs of 30 mm on one side (top or at bottom).
Fence height Dimensions panels No. of reinforcements Post length
(mm) W x H (mm) per panel (mm)
630 2500 x 630 2 1000
1030 2500 x 1030 2 1500
1230 2500 x 1230 3 1700
1530 2500 x 1530 3 2000
1730 2500x1730 3 2200
1930 2500x1930 3 2400
2030 2500x2030 4 2600
2430 2500x2430 4 3200
