Nylofor Medium

The Nylofor Medium system is a complete system, developed for a fast, professional and low cost installation.


Benefits

Extra long lifetime

The wire of the panel is galvanised, resistance welded and plastic coated with maximum adhesion.
The posts are galvanised inside and outside, passivated and plastic coated, and supplied complete with plastic top caps.


Rigidity and quality

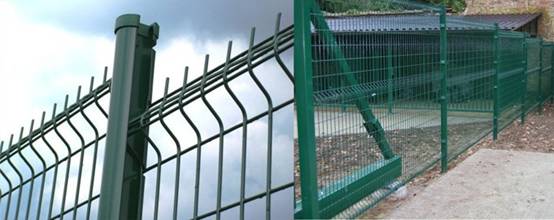

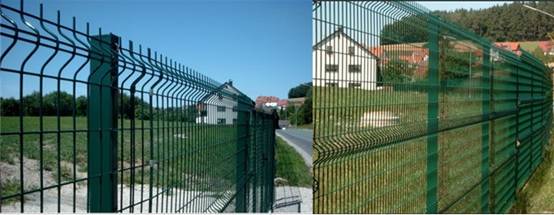

The panels are heavy welded mesh with rectangular meshes and horizontal reinforcements which give the panels a high rigidity.
Nylofor Medium provides high quality at low cost.


Rapid and fault-free installation

All components are perfectly harmonized with each other and developed to give a professional high quality fence, installed with maximum efficiency.

Complete system
The system consists of panels in various heights, square, Bekafast,  Bekafix or Bekafix Super posts with a specific fixing system, adapted accessories and a wide assortment of innovative swing and sliding gates.

Ideal for

Parks, playgrounds, gardens, factories and warehouses.


Technical Informations:

Mesh size: 100x50mm
Horizontal wire diameter:4.5mm and vertical wire diameter:4.0mm
Finish: galvanized then pvc coating.
Color:  green RAL6005  and white RAL9010 color.
The panel is reinforced by means of 2 or more V-shapes in the horizontal direction of the panel.
The panels have vertical barbs of 30 mm on one side (top or at bottom).
Fence height Dimensions panels No. of reinforcements Post length
(mm) W x H (mm) per panel (mm)
1030 2500 x 1030 2 1500
1230 2500 x 1230 2 1700
1530 2500 x 1530 3 2000
1730 2500x1730 3 2200
1930 2500x1930 3 2400
2030 2500x2030 4 2600
